Bookmarks and Buttons

Power BI

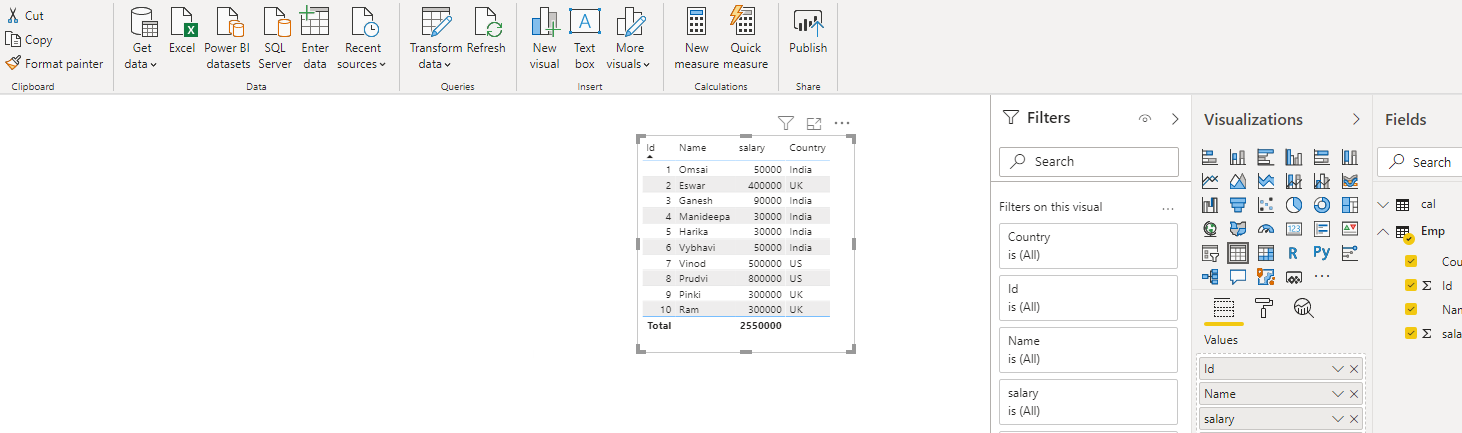

Select some columns into a table :

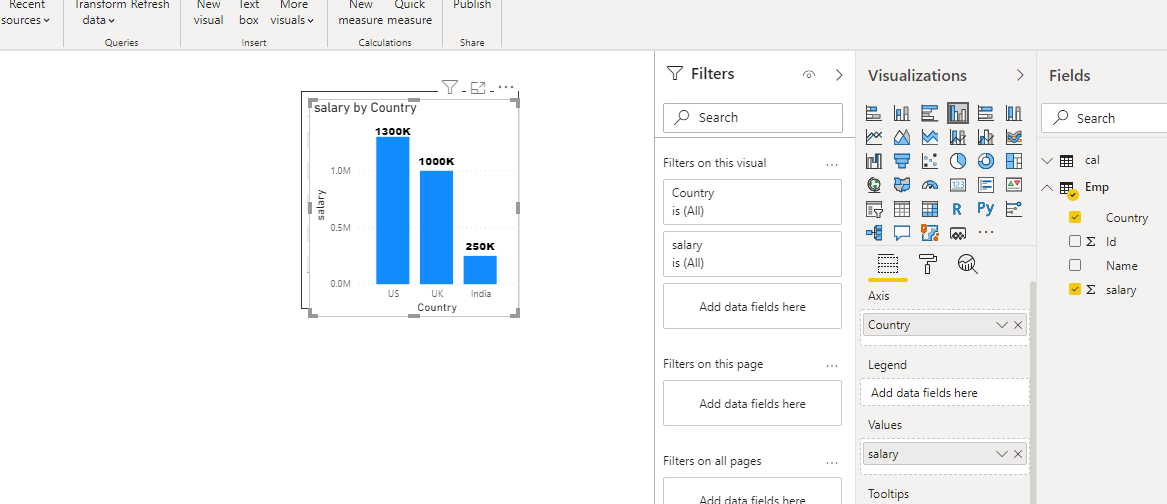

Copy Visual and Paste, change it to Bar Chart by selecting any one of the columns and overlap both visuals:

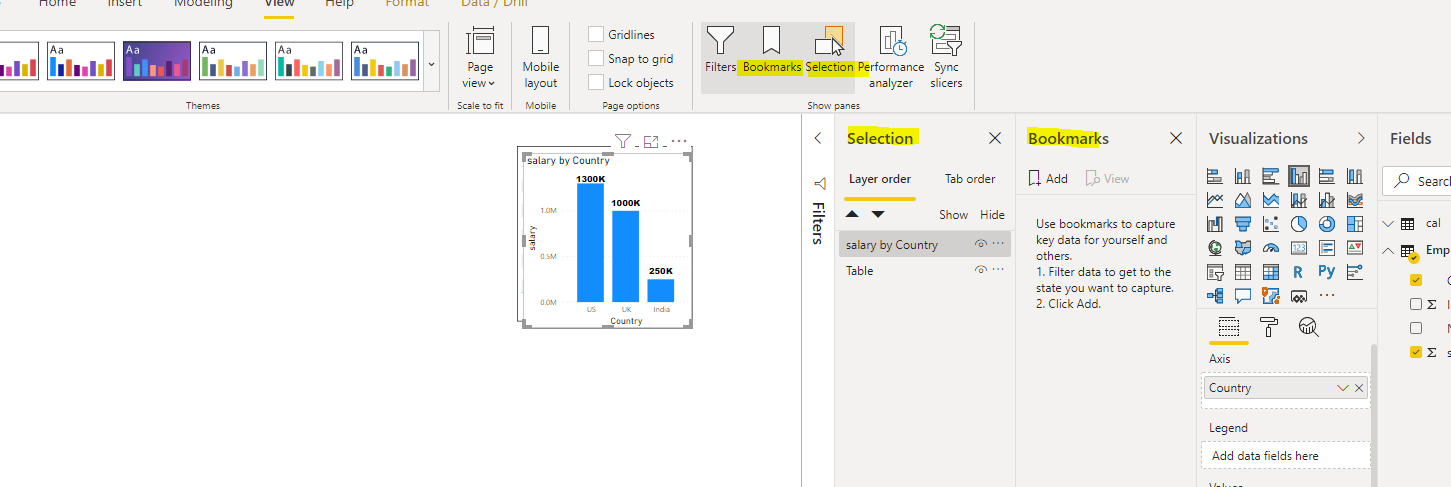

Goto View → Enable selection Pane and Bookmark Pane

In selection Pane, we Can hide and Display visuals

Bookmarks helpful to display state of visualizations :

Now, Create a bookmark :

→ Add Buttons

→ Capture Visuvals by hiding required visuals

Now,

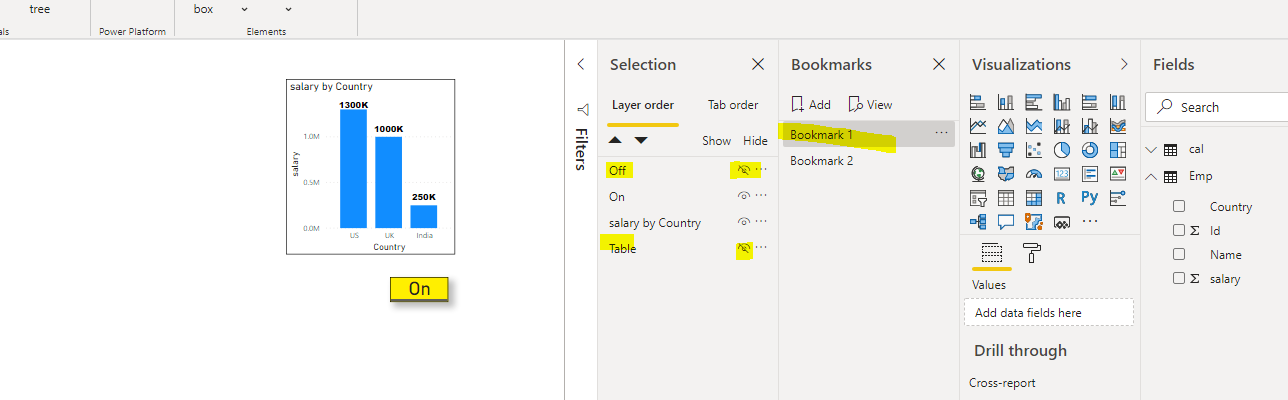

→ Hide the Table and Off button create bookmark and capture bar chart

Hide the bar chart and On Button, create bookmark and capture table

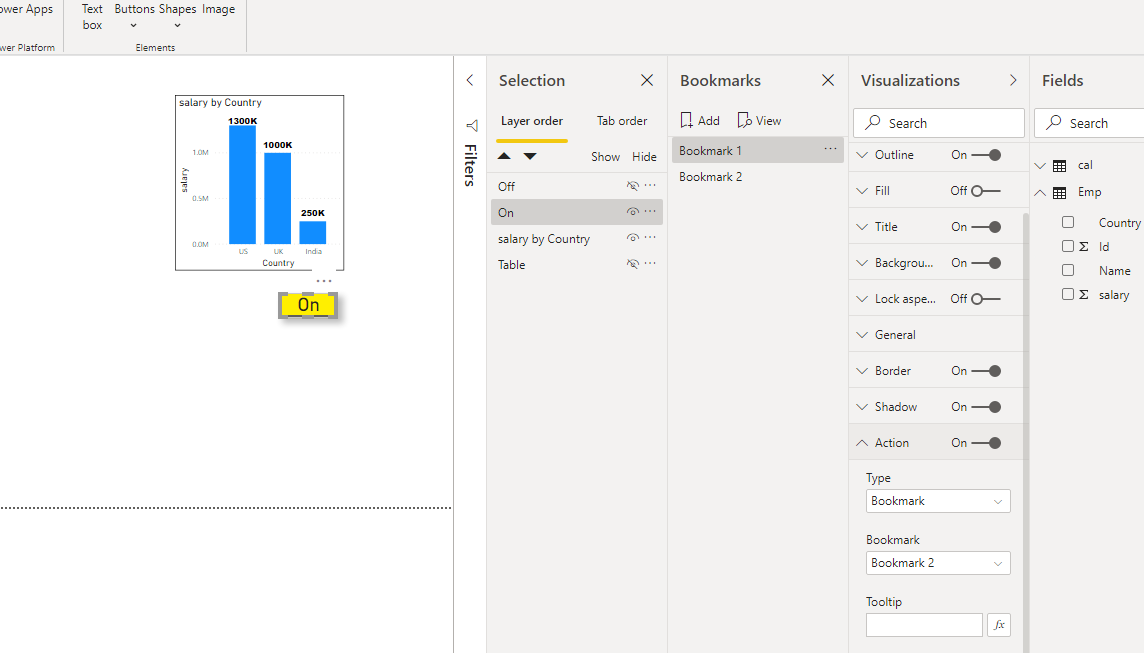

Click on Bookmark1 and select the visible button and Enable action in the properties pane

Type: Bookmark

Bookmark: Bookmark2

Click on Bookmark2 and select the visible button and Enable action in the properties pane

Type: Bookmark

Bookmark: Bookmark1

Now, Ctrl+click on buttons to Capture Visuals
